The Cabineo 8 is a one-piece connector with an integrated 8mm Euro screw, designed for fast and efficient assembly of cabinet and furniture panels. It is suitable for panels from 12mm thick, thanks to its slim fitting depth, and is ideal for thinner materials or lightweight constructions. It supports centre panel connections from 16mm thickness (when joined from both sides), and 90° corner connections with receiving panels from just 10mm.
Thanks to its short 8mm Euro screw, which is driven in with a cordless drill, the Cabineo 8 delivers strong clamping force while allowing installation in thinner materials. The connector is inserted into a machined pocket and tapped into place using a mallet. A integrated Euro screw is then driven into a 5mm hole in the adjoining panel, pulling the parts tightly together.
With no need for edge drilling or dowels, Cabineo 8 offers a quick, clean, and reliable connection, saving time in both machining and on-site assembly.
- Efficient machining with all CNC machines
- Faster machining and assembly
- Stronger connections
Installation Options:
The Cabineo offers three installation options to suit different design needs. The connector can be installed with the collar on the surface, covering the milled edge and leaving the connector slightly proud. Alternatively, the collar can be recessed so the connector sits flush with the panel surface. For a cleaner, more discreet finish, both the connector and an optional cover cap can be recessed so they sit flush with the panel. If the Cabineo needs to be hidden, cover caps are available in a range of colours to match or contrast with the panel finish.
Applications:
General furniture construction or carcass manufacturing using panel materials

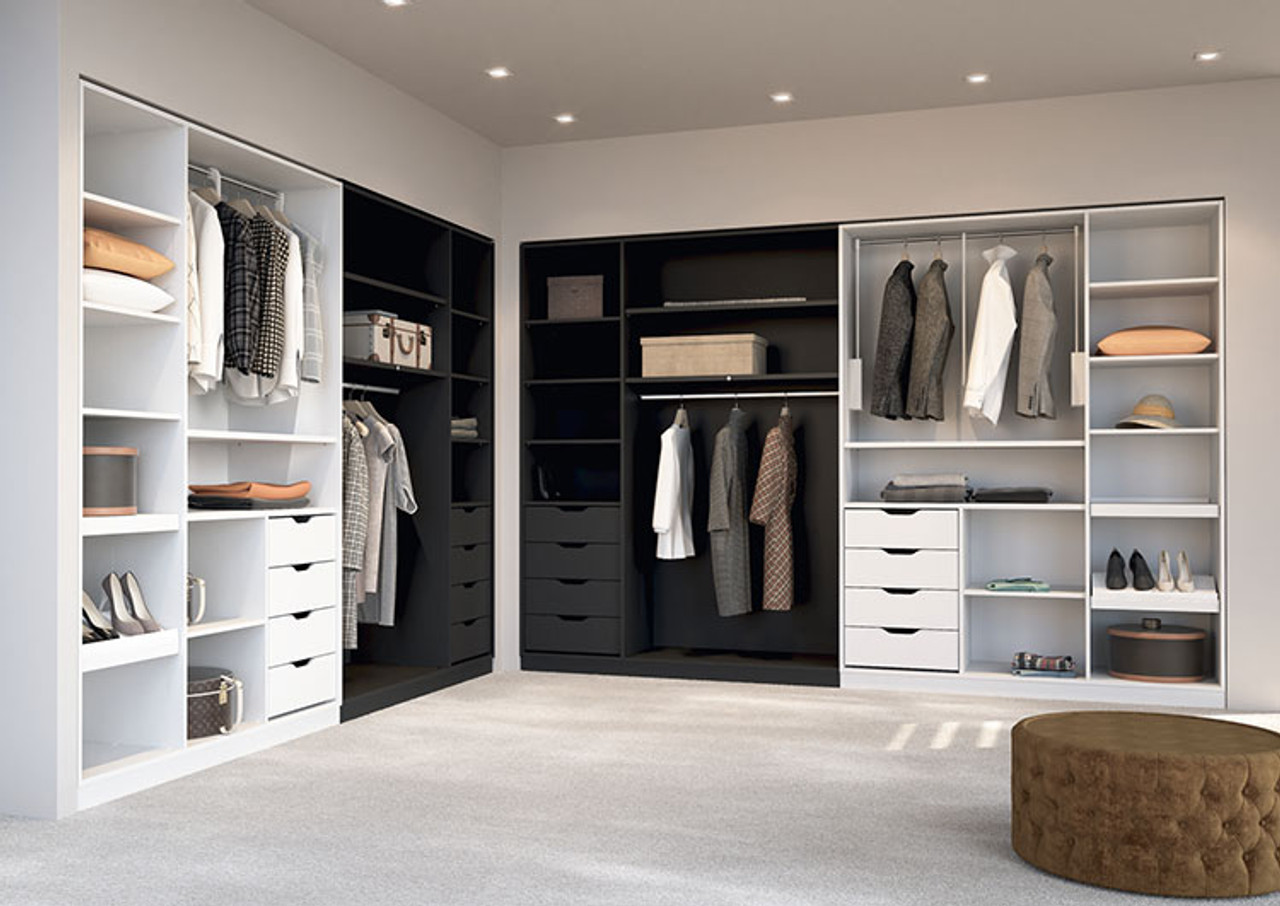

Built-in wardrobes and cupboards
Kitchen cupboards designed for flat-pack transport
Kitchen base units and open shelving
Furniture and display units in shopfitting and retail environments
Cabineo 8 size:
33.8 x 16.5 x 10.8mm
Material connector:
Fibreglass reinforced plastic
ø 12mm or smaller
Installation tolerance:
Longitudinal ± 0.1mm
Tensile strength (N) ~ 900 N ≈ 90kg
Installation instructions: Click here
