Blum Tools and Templates for Accurate Assembly

Blum Fitters Box

1734057 - Blum's Fitters Box - All the tools and templates needed to make your life easier on site or in the workshop. They'll always be on hand in the purpose built systainer designed to stack neatly with your existing toolboxes.  Drawer systems,...

ECODRILL

M31.1000 - ECODRILL (updated) with dust control, the essential tool for precise drilling of cabinet concealed hinges. This user-friendly jig ensures accurate marking and drilling of hole patterns on cabinet doors. It features a quick-release fastener...

Mounting Plate Template

65.5300 - Blum Hinge Jig for Accurate Mounting Plate Installation This precision Blum hinge jig (Blum part no. 65.5300) is the ideal tool for accurately marking fixing positions when installing Blum CLIP top mounting plates or TIP-ON holders. Designed...

Drilling Template for BLUMOTION | TIP-ON

65.5010 - Template for drilling the side fixing positions for BLUMOTION for doors handle side, hinge side and TIP-ON for doors. Assembly on a marking line Kit Includes: 1 x Drilling template for BLUMOTION | TIPON1 x Depth stop for a Ø 10mm...

Drilling Template for MOVENTO | TANDEM

T65.1000.02 - Template for pre-drilling the fixing positions for the MOVENTO/TANDEM locking devices and runner hook.  Kit Includes: 1 x Jig1 x Depth stop for a Ø 6mm drill More information and the entire range? Explore here

Universal Individual Template

65.1051.02 - Template for pre-drilling the fixing positions for cabinet profiles, lift mechanisms, mounting and adapter plates. The template can be used with assembled and unassembled cabinets.  Depth position setting using...

Universal Drilling Template

ZML.0040.02 – For marking or pre-drilling the fixing positions of front fixings including gallery, drawer back and base (only METABOX quick assembly version C15) and AVENTOS front fixings. Kit Includes: 1 x Universal drilling template1 x Depth...

BOXFIX E-L For LEGRABOX Drawers

ZMM.0700.01 - BOXFIX E-L for LEGRABOX drawer assembly: 3-sided, screw-on. Length area of drawer side: from 270 to 650mm. Suitable for Cabinet widths of 250 to 1200mm. Height of back: Maximum 212mm. Incentives Available - Please call us for further...

BOXFIX E-T For TANDEMBOX Drawers

ZMM.0350 - BOXFIX E-T for TANDEMBOX drawer assembly: 3-sided, screw-on. For length area of drawer side: 270 to 650mm. Suitable for Cabinet widths of 270 to 1200mm. Height of back: Maximum 199mm. Incentives Available - Please call us for further...

Centre Bit

M01.ZZ03.01 - Centre Bit - self centering design ensures precise drilling of 2.7mm pilot hole or in anticipation for larger drill. Use throughout the blum range of jigs/templates, hinges, runners, and drawer construction. Replacement 2.7mm pilot drills...

Drilling Template for Cruciform Mounting Plates

65.5070 - Drilling template for the processing of Cruciform mounting plates.  Kit Includes: 1 x Jig1 x Depth stop for a Ø 5mm drill

Drilling Template for INSERTA Hinges

65.059A - Drilling Template for fast and accurate positioning of hole patterns for 8mm holes, if using Blum knock-in or INSERTA hinges. An adjustable stop easily allows you to accurately distance the boss hole between 2-8mm from the door edge. Reverse...

Marking Template for Drawer Front Adjuster

65.2950 - Marking template for drawer front adjuster 295.1000, to ensure easy alignment of drawer fascia to wooden drawer boxes. Easy to use:Insert two marking templates in pre-drilled Ø20mm holes in the fascia reverse. With the drawer inserted...

Drilling Template for Hinge Systems

65.7500.03 – Blum drilling template for the measurements of hinge and mounting plate fixing positions. Easily transfer measurements from door to cabinet and from cabinet to door. Works with assembled or unassembled cabinets.  The template...

Universal Marking Template

65.5340.01 - All-in-One Marking Template - This comprehensive template crafted from durable nylon is essential for precisely marking a variety of Blum components. It's highly valued in both workshop and on-site settings for its accuracy and convenience...

BLUMOTION Drilling Template

65.5000 - Template for drilling the side fixing positions for BLUMOTION for doors handle side (970.1002) as well as for Tip-on for doors. Provides fixing positions for both adapter and mounting plates.  Enables you to pre-set repeating drilling...

TANDEMBOX Marking Template for Gallery

ZML.8030 - Template for determining the fascia fixing positions for TANDEMBOX plus/ANTARO, gallery rails with back height B and C. Easy to use, simply clip template over fascia fixing bracket to mark gallery position. Material: Nylon Require help? Give...

Drilling Template for Distance Bumper

ZML.1090 - Drilling template for damper. Assembly possiblilites with AVENTOS, LEGRABOX, TANDEMBOX Antaro, MOVENTO, TANDEM & SERVO-DRIVE.  Kit Includes: 1 x Drilling template 1 x Drilling depth spacer Ø 8mm 1 x Reducing bush...

Front Gap Template for TANDEMBOX

65.5627 - Achieve precise front gap alignment with the checking/adjustment template for TANDEMBOX drawers with TIP-ON BLUMOTION. This template makes it easy to adjust the front gap to 2.5 mm and can also be used to check the gap if the front is already...

Positioning Template for Catch Plate

65.5210.01 – Blum Template for determining the position of the TIP-ON screw-on catch plate. Simply attach the template to the end of the TIP-ON and allow it to transfer the measurements by marking the position on the door. Suitable for overlay and...

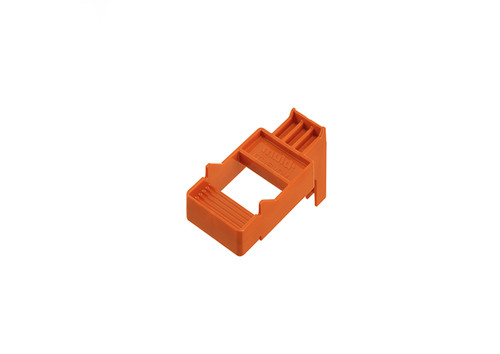

Front Gap Template for LEGRABOX | MOVENTO

65.5631 - Template for precise and convenient adjustment of the required 2.5mm gap between the drawer and cabinet before the drawer is installed, when using TIP-ON BLUMOTION latches with 'touch to open' functionality. The integrated adjustment allows...

Drilling Template for Drawer Front Adjusters

ZML.0050 - Template for drilling the fixing positions for the 295.1000 drawer front adjuster brackets to wooden drawers. Works in conjunction with the Blum cabinet configurator. For use with MOVENTO and TANDEM Material: Steel To find out more...

Knock-in Hinge Insertion Tool

ZME.0710 - Insertion tool enables you to knock in Blum; CLIP top BLUMOTION, CLIP top, CLIP or MODUL hinges with knock-in boss. Simply clip hinge into tool and knock into pre-drilled door with mallet. Material: Nylon Product specifications...

LEGRABOX Base Router

M35.7300 - Base router machine enables precise manufacturing of the rebate required for LEGRABOX drawer base. Straight forward to use with easy clamping of drawer base material which enables fast and easy milling. Suitable for drawer depths 270 - 650mm...

35 x 57mm Fittings Drill Bit No Tip RH | K20

M01.ZB35.OS - Drill bit Ø35 x 57mm without tip for use on thin or profiled doors, right hand rotation for use with Drilll Press P / M machines. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (A8) AVENTOS HF SERVO-DRIVE...

35 x 57mm Fittings Drill Bit RH | K19

M01.ZB35.02 - Drill bit Ø35 x 57mm right hand rotation for use with Drill Press P / M or bench mounted drill. Item package: 1 piece Assembly Possibilities: Front Assembly (A1) AVENTOS HF | HK-XS Hinge (Require x1) (C1) CLIP-top...

28 x 57mm Fittings Drill Bit RH | K18

M01.ZB28.02 - Drill bit Ø28 x 57mm right hand rotation for use with Drill Press P / M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (E1) Vertical cabinet connectors 40.0110N | 40.0620 | 40.0200...

26 x 57mm Fittings Drill Bit RH | K17

M01.ZB26.02 - Drill bit Ø26 x 57mm right hand rotation for use with Drill Press P / M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (C1) CLIP-top Mini hinges (Require x1) To find out more...

25 x 57mm Fittings Drill Bit RH | K16

M01.ZB25.02 - Drill bit Ø25 x 57mm right hand rotation for use with Drill Press P / M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Cabinet Assembly (D7) SERVO-DRIVE Bracket profile attachment (Require...

20 x 57mm Fittings Drill Bit RH | K15

M01.ZB20.02 - Drill bit Ø20 x 57mm right hand rotation for use with Drill Press P / M or bench mounted drills. Item package: 1 piece Assembly Possibilities: Front Assembly (D2) MOVENTO | TANDEM Front adjuster (Require x1) To find out...
