NEW 600mm - TANDEM full extension runners for wooden drawers with integrated TIP-ON push to open– enhanced convenience for you as no separate TIP-ON latch to fit, giving a cost saving.
Depth adjustment of +2/-3.5 and an offering an optional one part synchronisation linkage at the rear, for secure triggering even on wide fronts.
⬇ TANDEM the versatile runner brochure

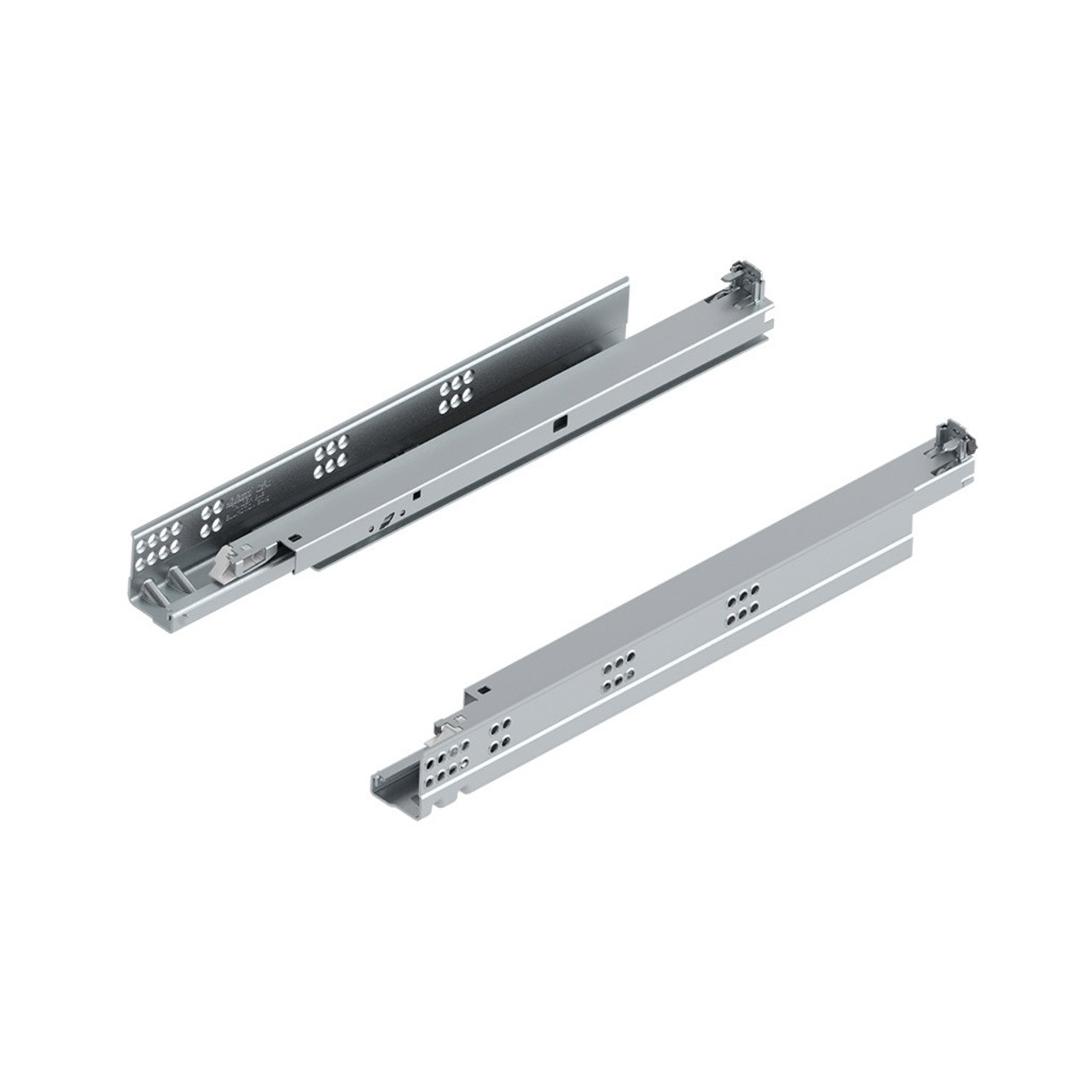

TANDEM TIP-ON push to open runners
For wooden drawer sides 11-16mm or 17-19mm
Full extension
Nominal length: 600mm
Dynamic load bearing: 30kg
Material: Steel
Colour / finish: Zinc plated
Requires locking device
Item package: Pair
Installation instructions 560H6000T runners (drawer sides 11-16mm)
Drawer box construction:
Cutting dimensions for back & front = Internal cabinet width -42mm (maximum drawer side thickness 16mm)
Cutting dimensions for side length = 590mm Detailed specification
Installation instructions 560F6000T runners (drawer sides 17-19mm)
Drawer box construction:
Cutting dimensions for back & front = Internal cabinet width -49mm (maximum drawer side thickness 19mm)
Cutting dimensions for side length = 590mm Detailed specification
*Please note TANDEM locking device are required Purchase here.
