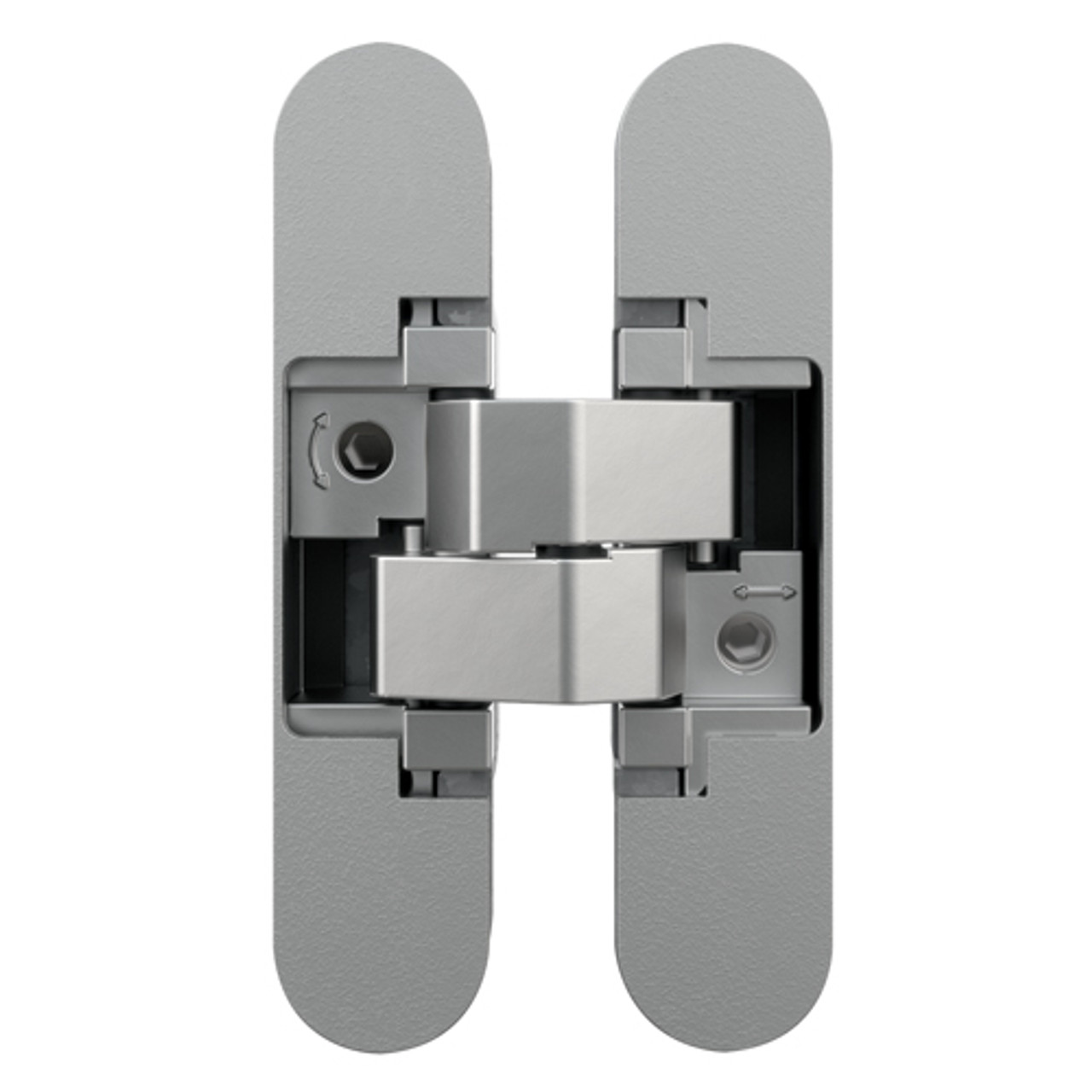

ANSELMI® The concealed hinge system for residential doors.
The ANSELMI patterns AN 150 3D and AN 170 3D offer the specifier the opportunity to use narrow frames of just 25mm depth due to the reduced frame cup of the hinge, this offers the potential of concealed hinges in the most delicate of joinery details.
For those manufacturers searching for production economies of scale and easy installation of their products on-site, the ANSELMI hinges with a reduced hinge frame part are the best choice. They allow the installation of frame architrave without any additional operation on-site, while the central milling on the door panel offers a complete reversibility of the door, that can be used indistinctly for left and right as well as for inward and outward opening. Furthermore, the extensive programme allows to switch between the different hinge models, increasing the load capacity whilst keeping the same milling geometry.
- Reduced hinge frame part
- For timber and aluminium frames
- For unrebated residential doors
- 3D adjustable (side +/- 1.5mm, height +/- 2.5mm, compression +/- 1mm)
- Load capacity up to 40 kg (AN 150 3D)
- Load capacity up to 60 kg (AN 170 3D)
- Opening angle 180°
Installation instructions: Click here
