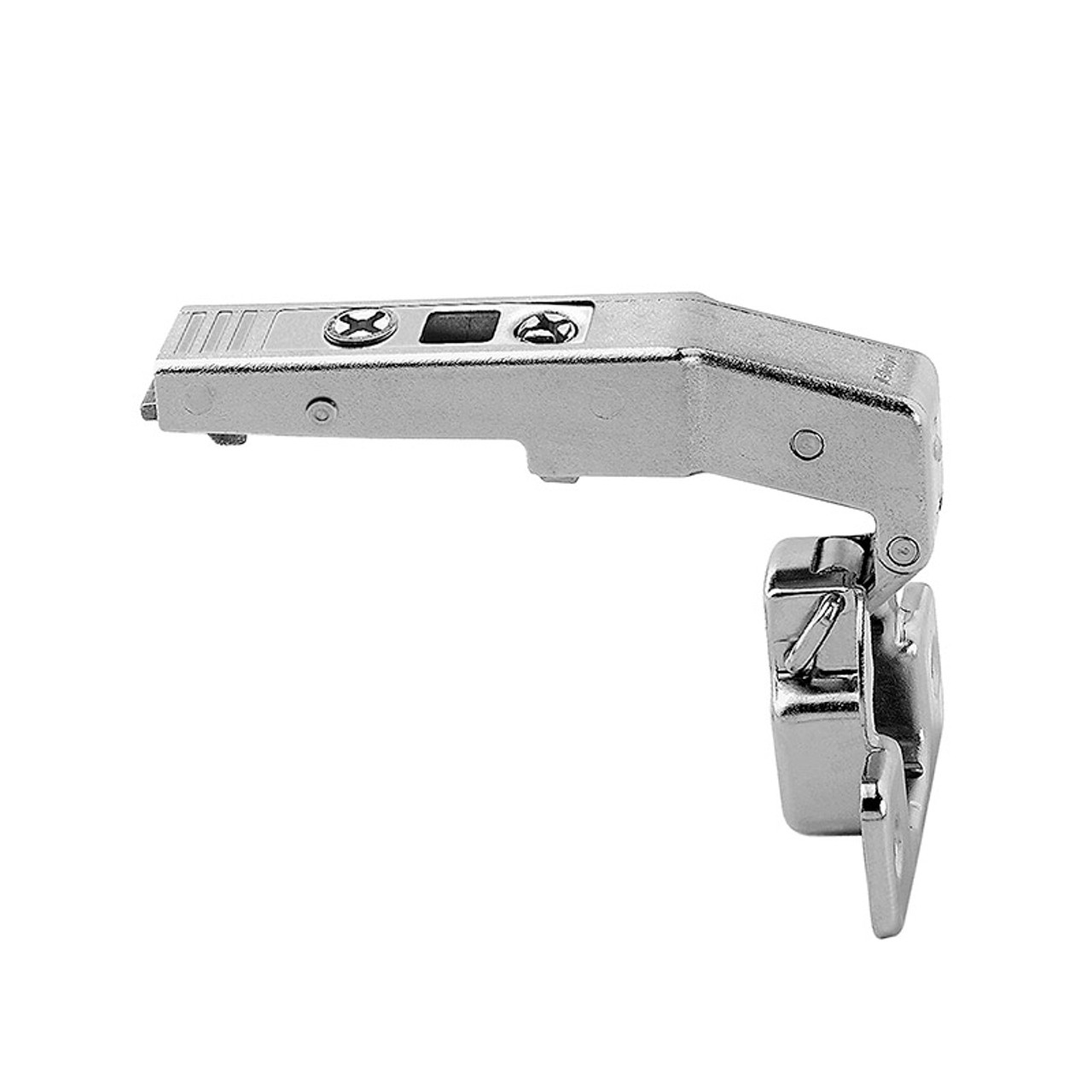

79T9550 - Blind Corner Hinge for Inset Applications
Designed for corner cabinets without a corner post, the Blum 79T9550 blind corner hinge is installed with a 3mm mounting plate (not included) to align the back of the door with the fixed panel. Suitable for doors between 16 and 28mm thick.
Three-dimensional adjustment: ±2.5mm side and ±1mm depth adjustment via spiral screw. CLIP top hinges, combined with Blum’s wide range of mounting plates, offer height adjustment. The CLIP top mechanism removes the need to screw the hinge to the plate.
Mounting plates sold separately - view compatible mounting plates for correct installation
Door thickness: 16 to 28mm
Application: Inset
Opening angle: 95°
Boss type: Screw-on
Required fixings: Ø3.5 x 17mm Screws
Hinge material: Steel/Nickel plated
Closing mechanism: With spring

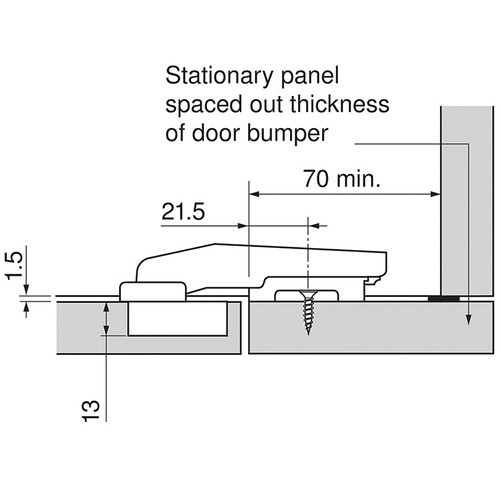

Mounting plate fixing position is 21.5mm from the front edge of the fixed panel.
