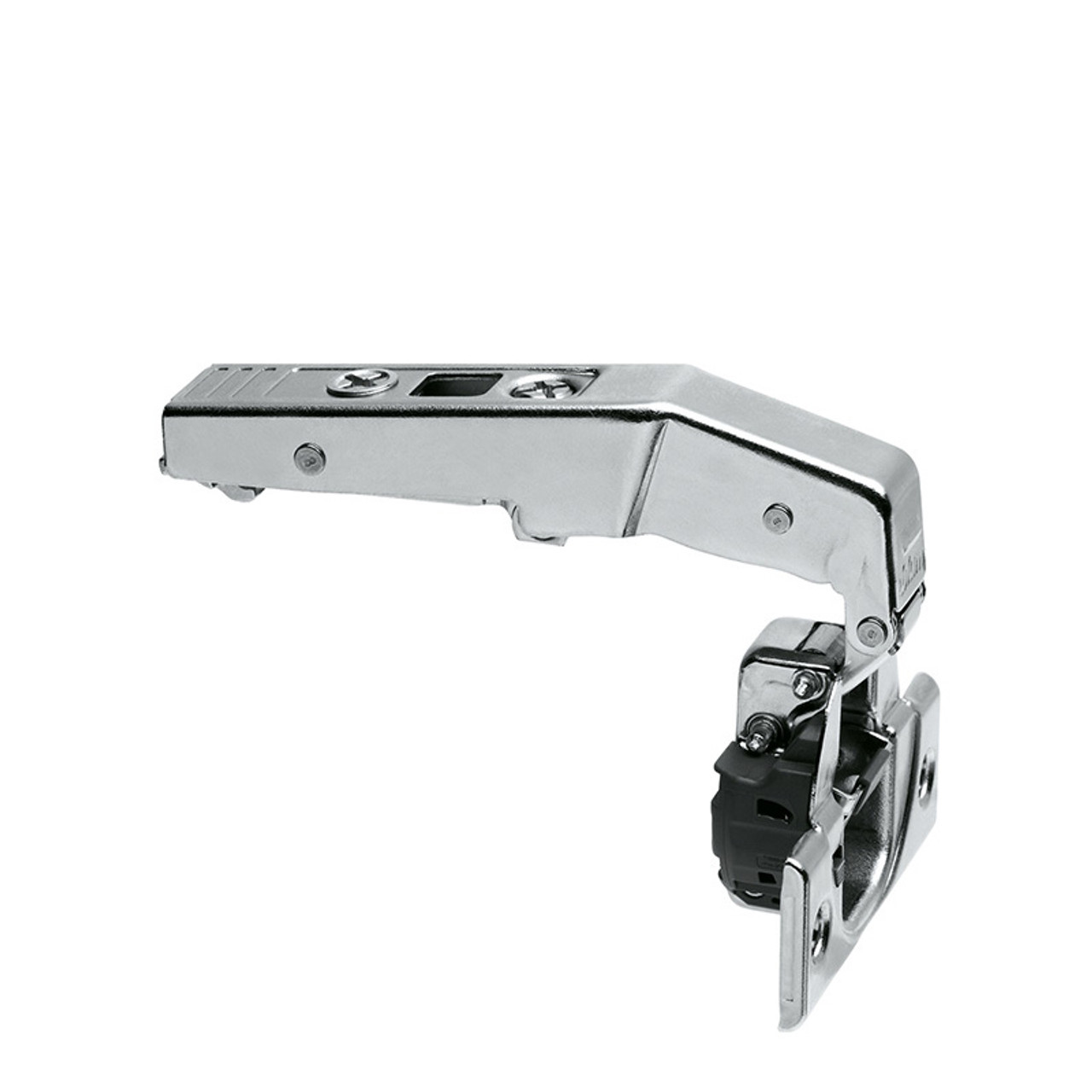

79B9550 - Blind Corner Hinge with Integrated Soft Close
Designed for corner cabinets without a corner post, the Blum 79B9550 blind corner hinge with integrated BLUMOTION soft close is used with a 3mm mounting plate (not included) to align the back of the door with the fixed panel. The mounting plate fixing position is set 21.5mm from the front edge of the fixed panel. This hinge is suitable for cabinet doors between 16 and 28mm thick and cannot be combined, with non-soft-close hinges on the same door.
BLUMOTION technology provides a silent, soft-close action, delivering consistent performance even on light or small cabinet doors. The soft-close function can be deactivated via a switch on the hinge boss if required.
Mounting plates sold separately - view compatible mounting plates for correct installation
Door thickness: 16 to 28mm
Application: Inset
Opening angle: 95°
BLUMOTION soft close built in
Boss cup: Ø35 x 13mm - Screw-on
Required fixings: Ø3.5 x 17mm Screws
Hinge material: Steel/Nickel plated
Three-dimensional adjustment: ±2.5mm side and ±1mm depth adjustment via spiral screw. CLIP top hinges, combined with Blum’s wide range of mounting plates, offer height adjustment. The CLIP top mechanism removes the need to screw the hinge to the plate.
