Cupboard stay for wooden or aluminium doors with a frame width from 45mm
- Minimum installation depth of 130mm
- Adjusting the arms (overshear) turns the lid stay into a flap stay
- Less space required inside the cabinet
- Wear-resistant friction coupling with large adjusting range
- Unhanded design
- Contains braking and locking mechanisms which is easily adjusted using an SW4 hex key
- Self closing function
- Clip-mounting on pre-mounted screw fixing brackets, no tools required

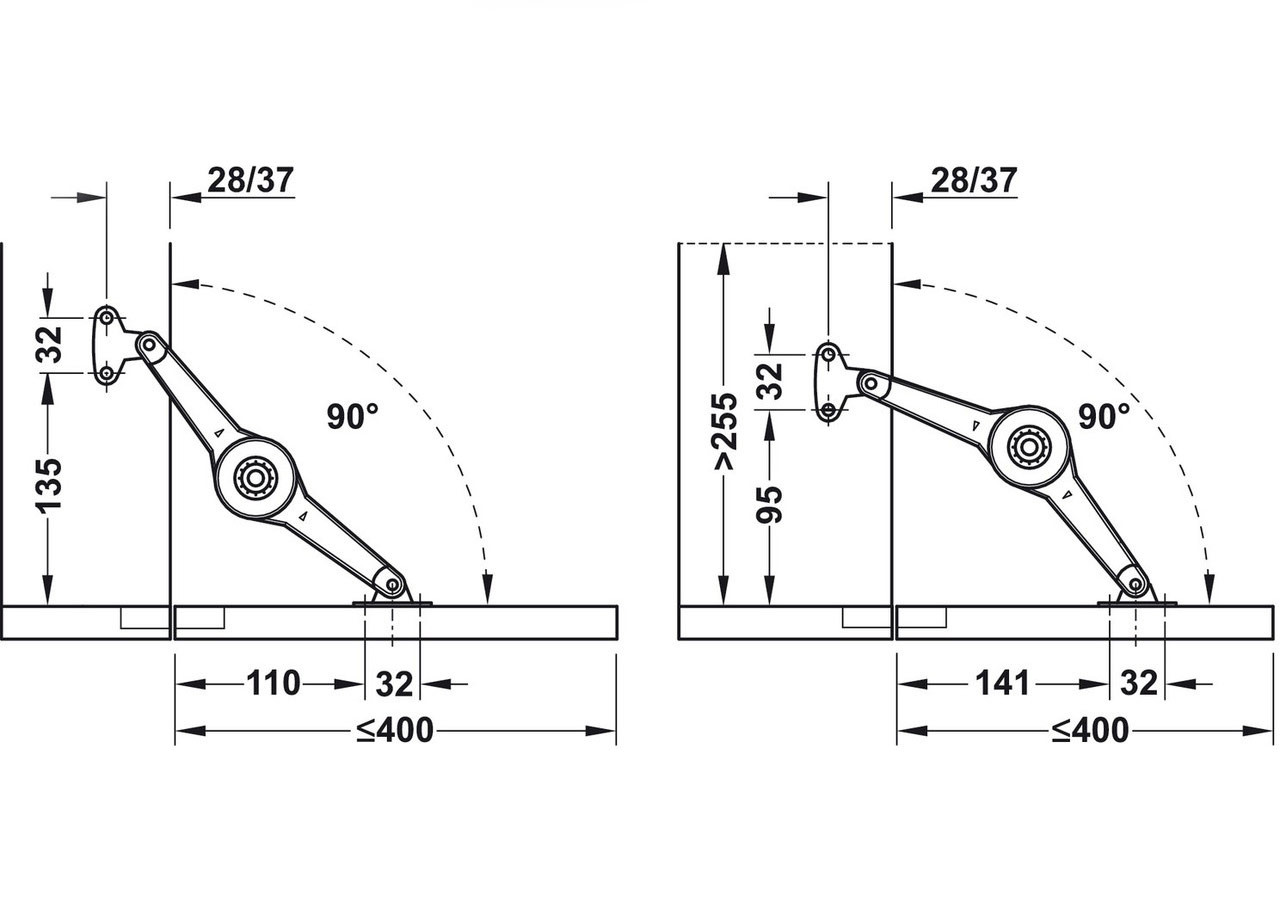

Opening Angle: 75°, 90° or 110°
Adjustment facility: Height ±2mm, side +3/-1mm, tilt ±1.5mm and pull adjustment facility.
Material: Zinc alloy
