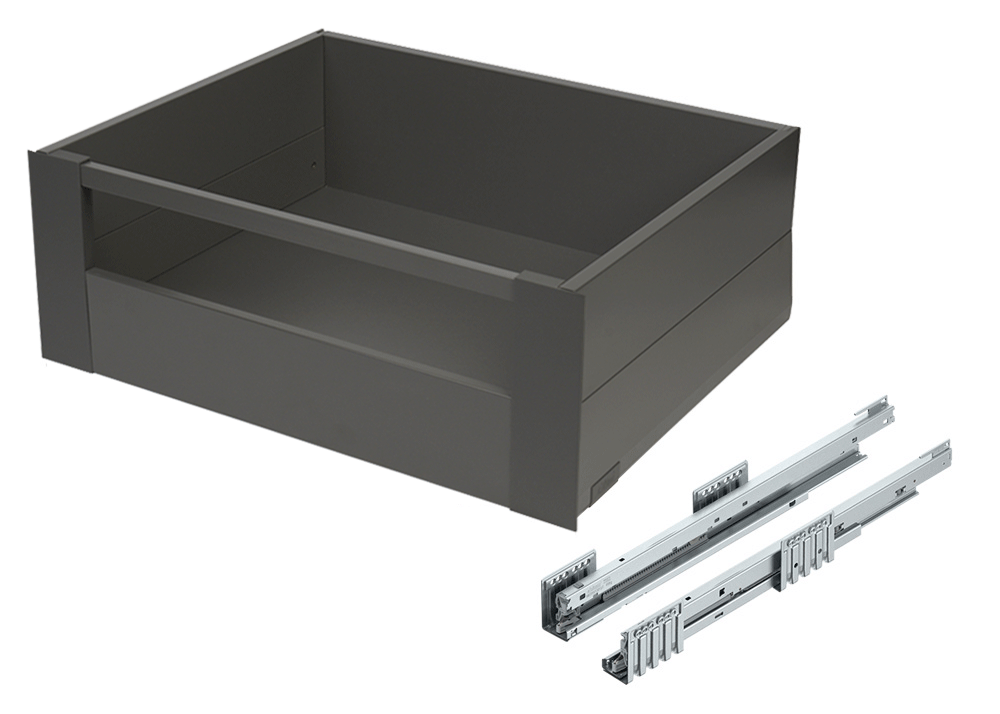

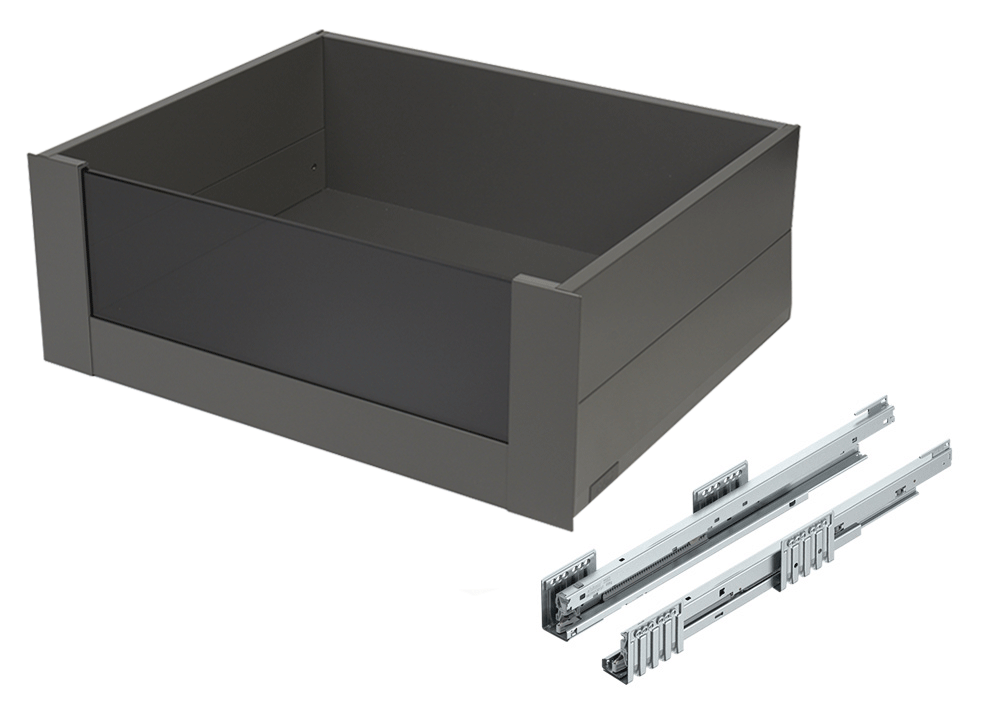

Blum MERIVOBOX BOXCAP E height (192mm) drawer boxes feature high-sided BOXCAP walls and full-extension soft-close runners. Individually manufactured to suit cabinets with a 264mm internal width and drawer side lengths from 270mm to 600mm. Supplied pre-assembled as either a standard drawer or inner drawer, with a choice of gallery or high smoked glass front, they reduce manufacturing costs and fitting time while ensuring consistent, high-quality results.
The BOXCAP profile enhances the MERIVOBOX clean, straight-lined design, creating a fully enclosed metal-sided finish. These drawers are suited to storing heavy or bulky items, including cookware, baking trays, appliances, and wardrobe accessories such as clothing or linens.
With sleek sides, Blum’s signature design line, and 40kg runners as standard, MERIVOBOX drawers combine strength, stability, and a clean, modern aesthetic. Full-extension runners with BLUMOTION soft-close ensure smooth, silent operation under load.
For a touch-to-open option, the supplied, the TIP-ON BLUMOTION latch set allows drawers to open with a light touch while closing silently.
Drawer Sides:
- Slim steel sides in Orion Grey matt finish
- Cover caps conceal adjustment points for a clean look
- Zero-position with 3D front fitting for perfect alignment
- Fronts can be fitted or removed with one hand
Drawer Runners:
- 40kg load capacity
- Nylon rollers for smooth, quiet operation
- Integrated BLUMOTION soft-close
- Optional TIP-ON BLUMOTION for touch-to-open + soft-close
Set Comprises:
- Pre-assembled E-height drawer + BOXCAP (192mm)
- Full-extension soft-close runners (R+L)
- Front fixing brackets or Fitted inner front
- Durable ABS-edged front
- Blum Lifetime Guarantee
Technical Details:
The built-in holding position allows for single-handed fitting or removal of fronts - even when the drawer is closed. Inside the drawer box, a flush inset cover cap conceals the universal 3D adjustment points, maintaining a clean, professional internal finish.
- Cabinet depth required: Side length + 3mm
- Front alignment: 3D - height ±2mm, side ±1.5mm, tilt ±1.5mm
View the MERIVOBOX Full Range - Catalogue and Technical Manual
