TIP-ON push to open latch set (Unit + latch + Adapter) for LEGRABOX and MOVENTO.
The MOVENTO and LEGRABOX runner systems have been designed to support the mechanical opening system. Various nominal lengths and weight ranges can be implemented using the different TIP-ON BLUMOTION units available. All other components are universal.
TIP-ON BLUMOTION Unit
for LEGRABOX-S/MOVENTO-S runners
Nominal length: 270-750mm
Trigger path: 1mm
Material: Nylon/steel
Fixing method: to slip-on
Depth adjustment: +/-3mm
Item package: right+left
for LEGRABOX-S/MOVENTO-S runners
Nominal length: 270-750mm
Trigger path: 1mm
Material: Nylon/steel
Fixing method: to slip-on
Depth adjustment: +/-3mm
Item package: right+left
| Nominal length | Weight range | Unit | Colour coding system |
|---|---|---|---|
| 270-320mm | ≤ 10 kg 10-20 kg |
S0 S1 |
White Light grey |
| 350-750mm | ≤ 20 kg 15-40 kg 35-70 kg |
L1 L3 L5 |
Light grey Dust grey Black |
| 350-600mm | ≤ 20 kg 15-40 kg |
L1 (for sink pull-out) L3 (for sink pull-out) |
Light grey Dust grey |
Recommended weight ranges (total weight of the pull-out) for an optimum opening and closing function
Set Comprises:
1 x TIP-ON BLUMOTION unit left/right

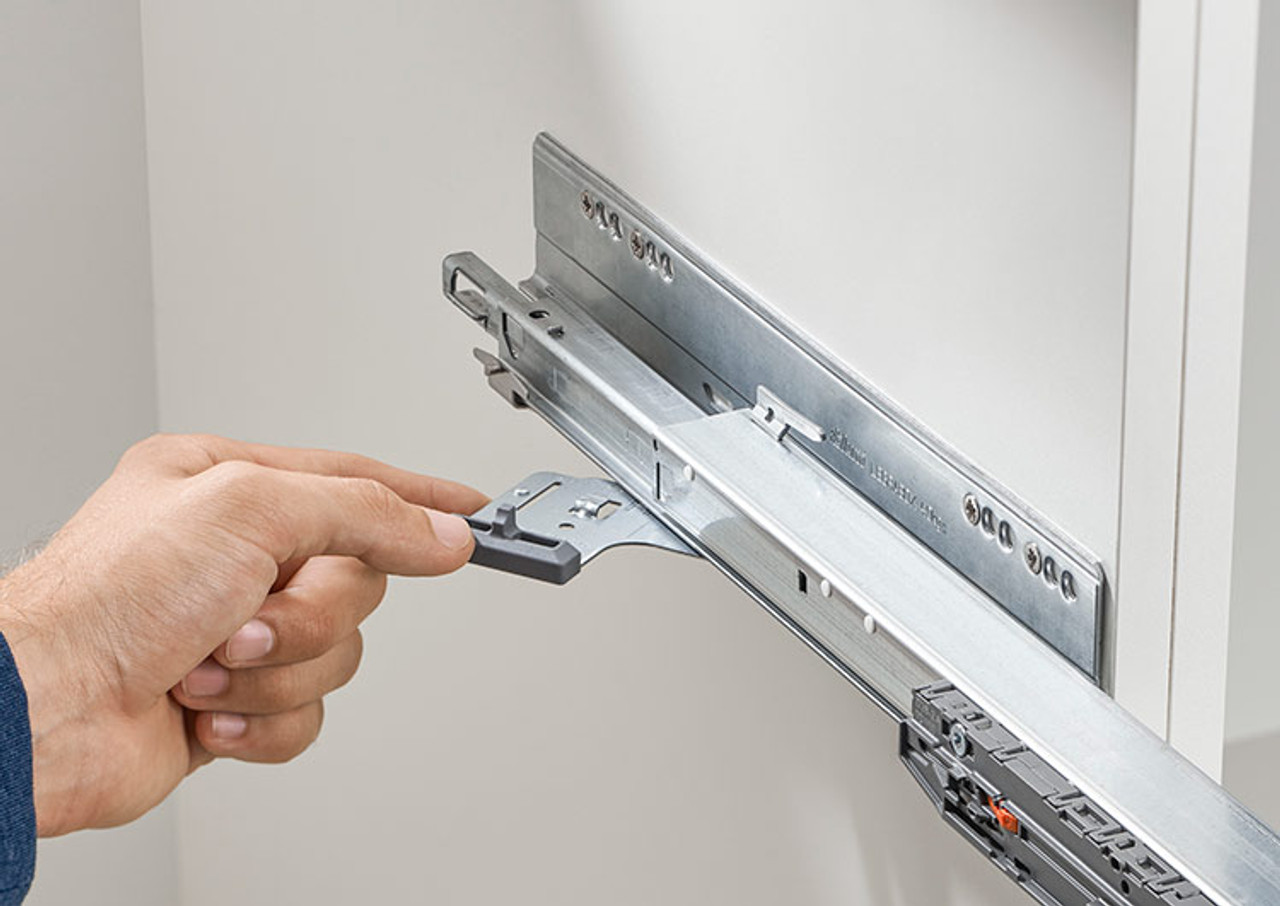

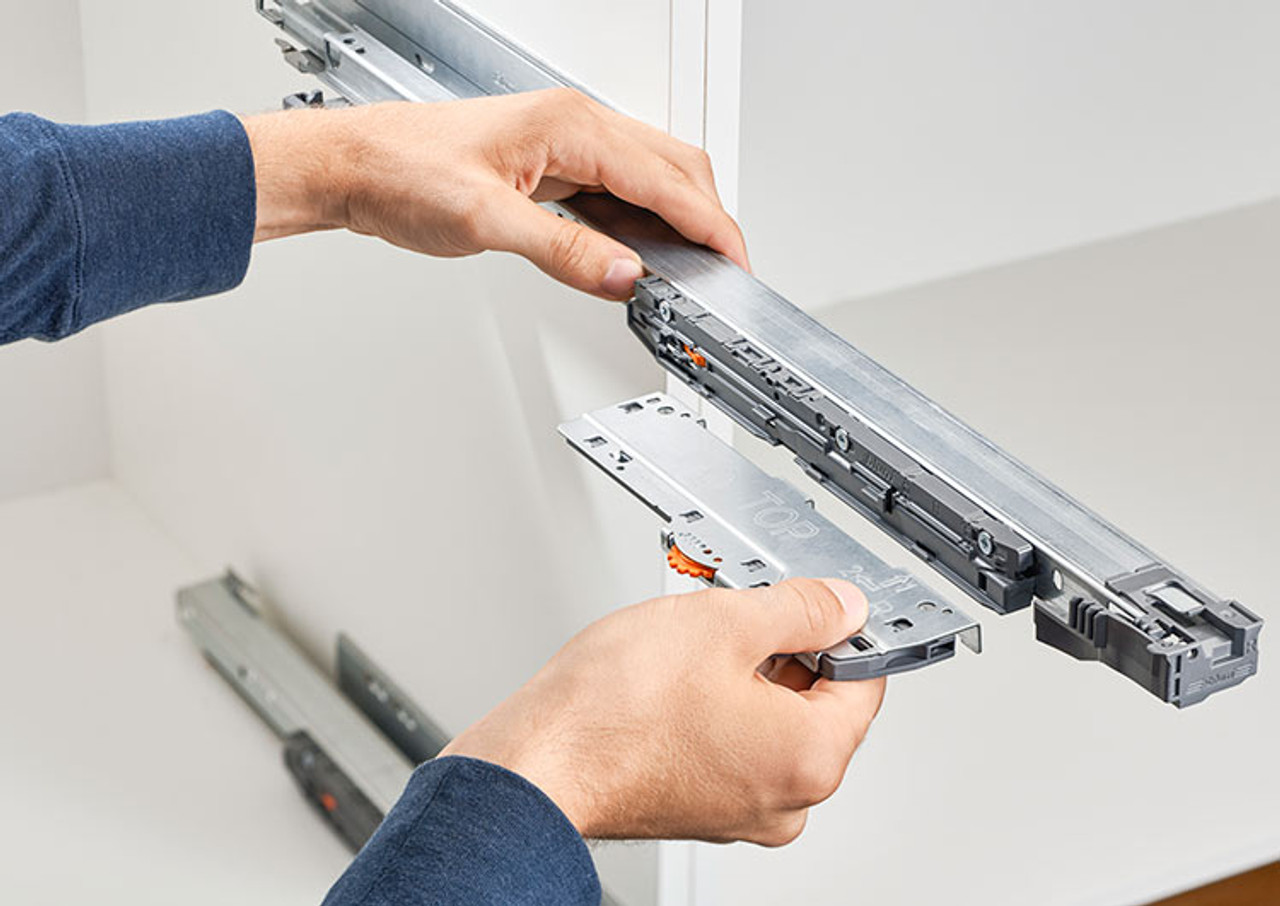

1 x TIP-ON BLUMOTION latch left/right

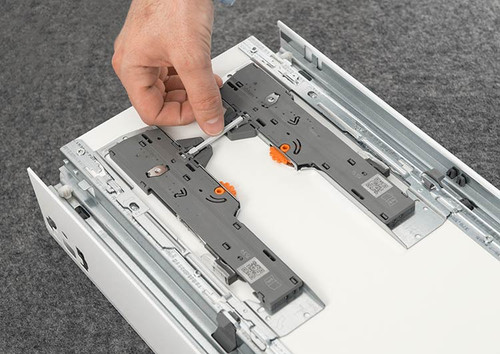

2 x TIP-ON BLUMOTION synchronisation adapter
