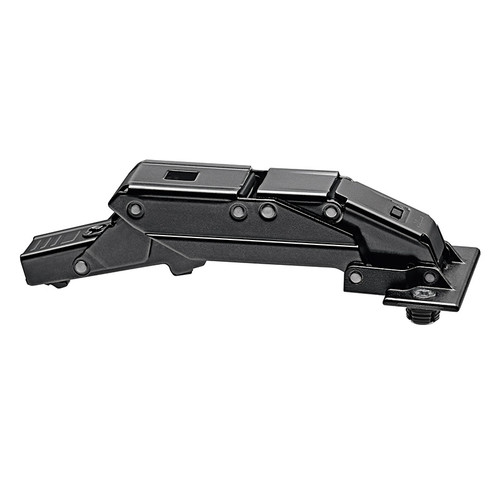

71B453T - Nil-protrusion BLUMOTION hinges for thin fronts between 8 and 14mm, the new EXPANDO T fixing requires just two 10mm diameter holes, 6mm in depth. Steel teeth bite into the material of hard fronts, while nylon components ensure firm anchorage in soft materials. Assembly is simple in just a few steps; drill, insert and tighten the screws.
BLUMOTION gives silent and effortless soft closing function every time. High quality of motion even with small/light furniture doors, this function can be easily deactivated if required via a switch on the hinge.
Hinge for door thickness 8 - 14mm
Application: Suitable for overlay, inset and dual applications
Opening angle: 110°
BLUMOTION soft close built in
Boss type: EXPANDO T
Hinge material: Steel/Nickel plated
Installation instructions: Click here
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw. CLIP top hinges combined with Blum’s wide range of mounting plates offer height adjustment. CLIP top mechanism removes the need to screw the hinge to the plate.
*Please note mounting plates to be purchased separately. View selection here
Click here for more information and the entire range Click here
EXPANDO T is suitable for fastening Blum fittings to thin panels used in furniture manufacturing. Panels of 8 mm thickness or more can be used, provided they have sufficient stability and strength.
| Application areas and assembly recommendations | |
|---|---|
| Materials tested by Blum | Minimum tightening torque (Nm) |
| Chipboard (transverse tensile strength > 0.4 N/mm²) | 1,5 |
| MDF (transverse tensile strength > 0.6 N/mm²) | 1,5 |
| HDF | 2 |
| HPL | 2 |
| Mineral composites | 2 |
| Natural stone - Nero Assoluto granite | 3 |
| Artificial stone – quartz composite | 3 |
| Ceramic panels | 3 |
Blum accepts no liability for the use of EXPANDO T in combination with materials not listed or in conjunction with fittings from other manufacturers. It is recommended that assembly be carried out by an experienced furniture manufacturer.
