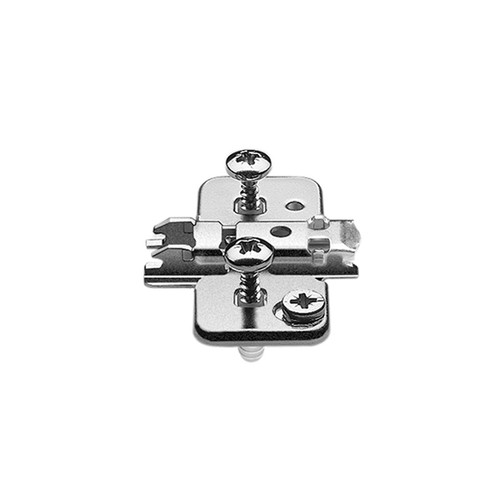

174H7100I CLIP Cruciform Mounting Plate with Cam | 0mm

Compatible hinge: CLIP top BLUMOTION/CLIP top/CLIP
Shape of mounting plate: Cruciform
Spacing: 0mm for 18mm cabinet sides
Material: Steel/Zinc die-cast lever
Finish: Nickel plated
Fixing: INSERTA (tool free assembly)
Mounting plates height adjustment: With cam
Height adjustment: +/- 2mm

Installation instructions

Fixings position: 37mm in from the front edge of cabinet
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm
