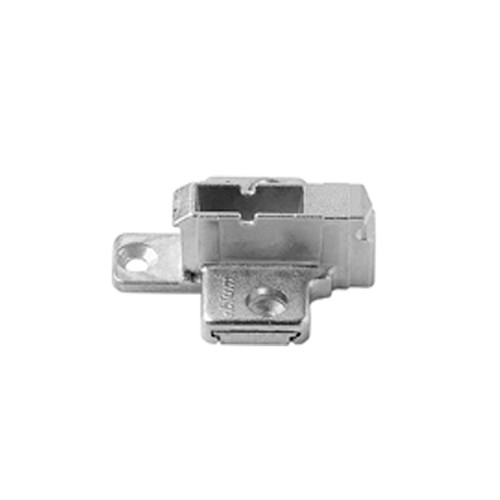

Designed for 9mm spacing, making it the preferred choice for converting 155° and 170° dual wide-opening hinges to inset applications.
Compatible hinge: CLIP top BLUMOTION/CLIP top/CLIP
Shape of mounting plate: Cruciform
Spacing: 9mm
Material: Zinc diecast
Finish: Nickel plated
Required fixings: System screws Ø6.0 x 14.5mm
Mounting plates height adjustment: With screw
Height adjustment: +/- 2mm
Fixings position: 37mm in from the front edge of cabinet
Diameter of fixing holes: 5mm
Drilling depth of fixing holes: 11.5mm
To find out more information and for the entire range Click here
Product Videos
Videos Hide Videos Show Videos
Custom Field
Fixing System Screws (not included)
Material Zinc Diecast
