71B4500C - The CRISTALLO glass door hinge requires no drilling of the glass and can be used for a wide range of glass or mirror fronted cabinets. With nil-protrusion, standard applications and inners drawers can be facilitated. The CRISTALLO hinge gives a unique level of stability, while its linear design ensures the new hinge blends discreetly with furniture, such as glass display cabinets.

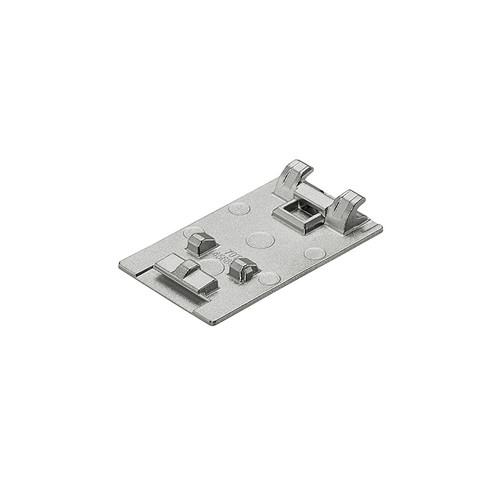

NB, The CRISTALLO adhesion plate below needs to be purchased separately to attach the hinge to the glass or mirror doors. If fitting to a glass display cabinet, the 75M4C20N CLIP CRISTALLO mounting plate also needs purchasing.
BLUMOTION gives silent and effortless soft closing function every time. High quality of motion even with small/light furniture doors, this function can be easily deactivated if required via a switch on the hinge.
Hinge for door thickness 3 - 8mm
Application: Suitable for overlay, inset and dual applications
Opening angle: 110°
BLUMOTION soft close built in
Boss type: Glue-on
Hinge material: Steel/Nickel plated
Installation Instructions: Click here
Three-dimensional adjustment: +/-2mm side and +3/-2mm depth adjustment via spiral screw. CLIP top hinges combined with Blum’s wide range of mounting plates offer height adjustment. CLIP top mechanism removes the need to screw the hinge to the plate.
*Please note mounting plates to be purchased separately and this hinge cannot be combined with non soft close hinges on a door. View selection here
To find out more information and for the entire range Click here
Please contact your glass supplier concerning the correct adhesive and its use in fixing the mounting/adhesive plate, to glass or mirror doors.
Disclaimer of liability: Click here
If the Blum fittings are installed according to instructions and on suitable glass or mirror fronts, they will meet the requirements concerning the stability of the connection.
This is monitored through internal and external testing.
As the adhesive and/or the adhesive process are beyond our control, we nor Blum cannot accept any liability for claims arising from the failure or malfunction of this/these process/es.
It is recommended that the adhesive be applied by an experienced glass manufacturer.
