For use with cabinet heights from 205mm to 600mm, widths up to 1800mm and a power factor of 930 - 2800.
To determine power factor - Multiply the cabinet height (mm) by the door weight (kg).
Handle-less lift stay - fronts open with ease thanks to the AVENTOS HK top TIP-ON mechanical opening system. Tall and wall cabinets open at a single touch on the front which releases the lift system, so that you can open it upwards with ease. Wall cabinets can be left open in any position while cooking, allowing freedom of movement and easy access. To close, simply press the lift system shut.
- Perfect motion with a variable stop
- 3-dimensional front adjustment
- No other hinges are required
- Integrated safety mechanism
Versatile use of materials- can be used with wooden fronts, wide and narrow aluminium frames, or even thin fronts of just 8mm or more with EXPANDO T.
AVENTOS HK top TIP-ON lift mechanism: 22K2500T
Power factor: 930 - 2800
Minimum internal cabinet depth: 187mm
Minimum internal cabinet height: 176mm
Required door thickness: 8mm to 30mm
Fixing onto cabinet: Screw-on
Opening mechanism: TIP-ON
Lift material: Steel/Zinc plated
Item package: L+R mechanism with 8 chipboard screws 35 x Ø4.0mm
Installation instructions: Click here

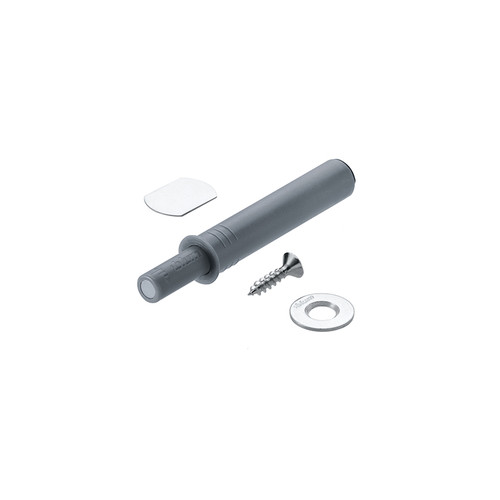

*Please note cover caps, front fixings and TIP-ON piston to be purchased separately.
To find out more information and the entire range: Catalogue and technical manual
