Workshop-level precision wherever you’re working. The Festool CSC SYS 50 EB-Basic-Set combines the compact cordless table saw with the UG-CSC-SYS underframe, giving you an accurate and mobile cutting setup for the workshop or site.

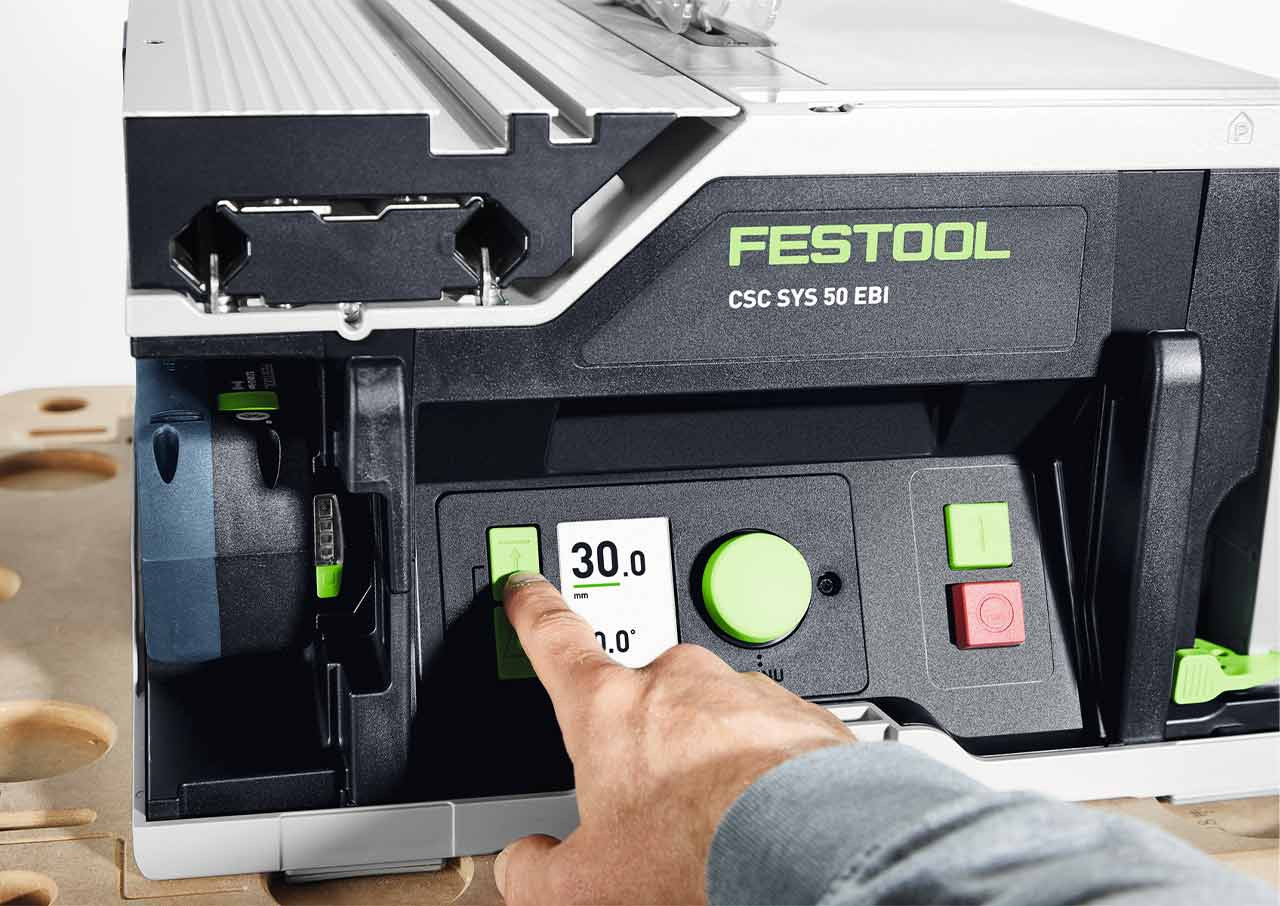

The CSC SYS 50 handles parallel cuts up to 280mm, crosscuts up to 450mm and angled cuts from -2° to 47°. Its digital adjustment system lets you set the blade height and angle to within 0.1mm, making accurate, repeatable cuts straightforward. Powered by a 2 x 18V battery system and brushless EC-TEC motor, it delivers speeds of up to 6,800rpm for demanding day-to-day cutting.

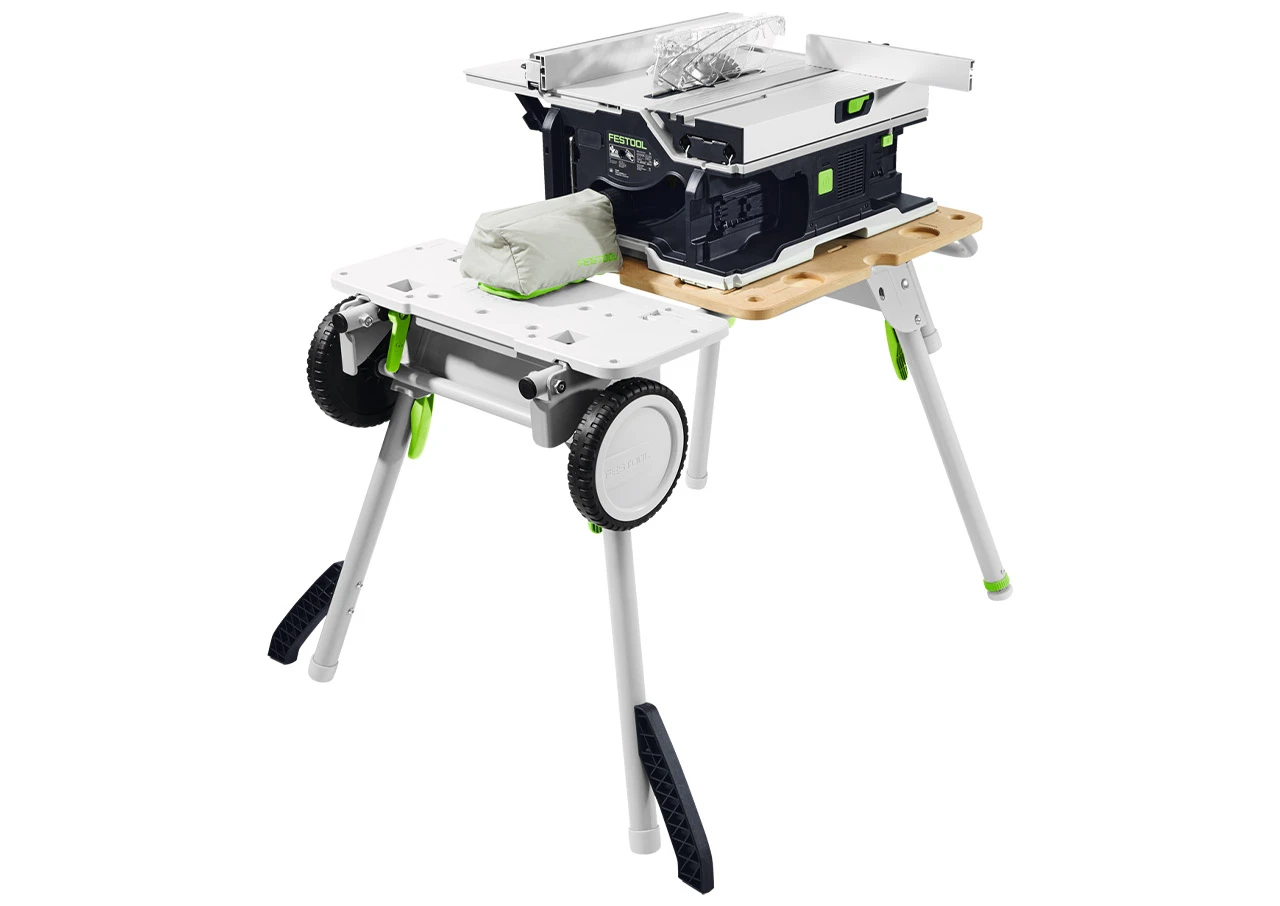

The UG-CSC-SYS underframe makes the setup easier to transport and raises the saw to a comfortable 90cm working height. It can also be used as a mobile worktable or Systainer transport trolley, giving you a versatile setup that’s easy to move between jobs.
Operational Instructions for the CSC SYS 50
Operational Instructions for the UG-CSC-SYS
What’s Included
- Saw blade: HW 168 x 1.8 x 20 WD42
- Parallel side fence
- Workpiece holder
- Preset profile setting rail
- Chip collection bag: SB-CSC SYS
- Splitting wedge for concealed cuts
- Splitting wedge with protective hood
- Hex key: WAF 6
- UG-CSC-SYS underframe
Technical Specifications
- Battery required: 2 x 18V
- No-load speed: 4,500-6,800rpm
- Saw blade bore: 20mm
- Inclination angle: -10° to +47°
- Cutting height at 0°: 0-48mm
- Cutting height at 45°: 0-34mm
- Cutting height at -10°: 21-32mm
- Parallel cutting width: 280mm
- Cross-cut width: up to 450mm
- Dust extraction connection: 27mm
- Product weight without accessories: 15kg
Please note: Batteries and charger are not included and must be purchased separately.
