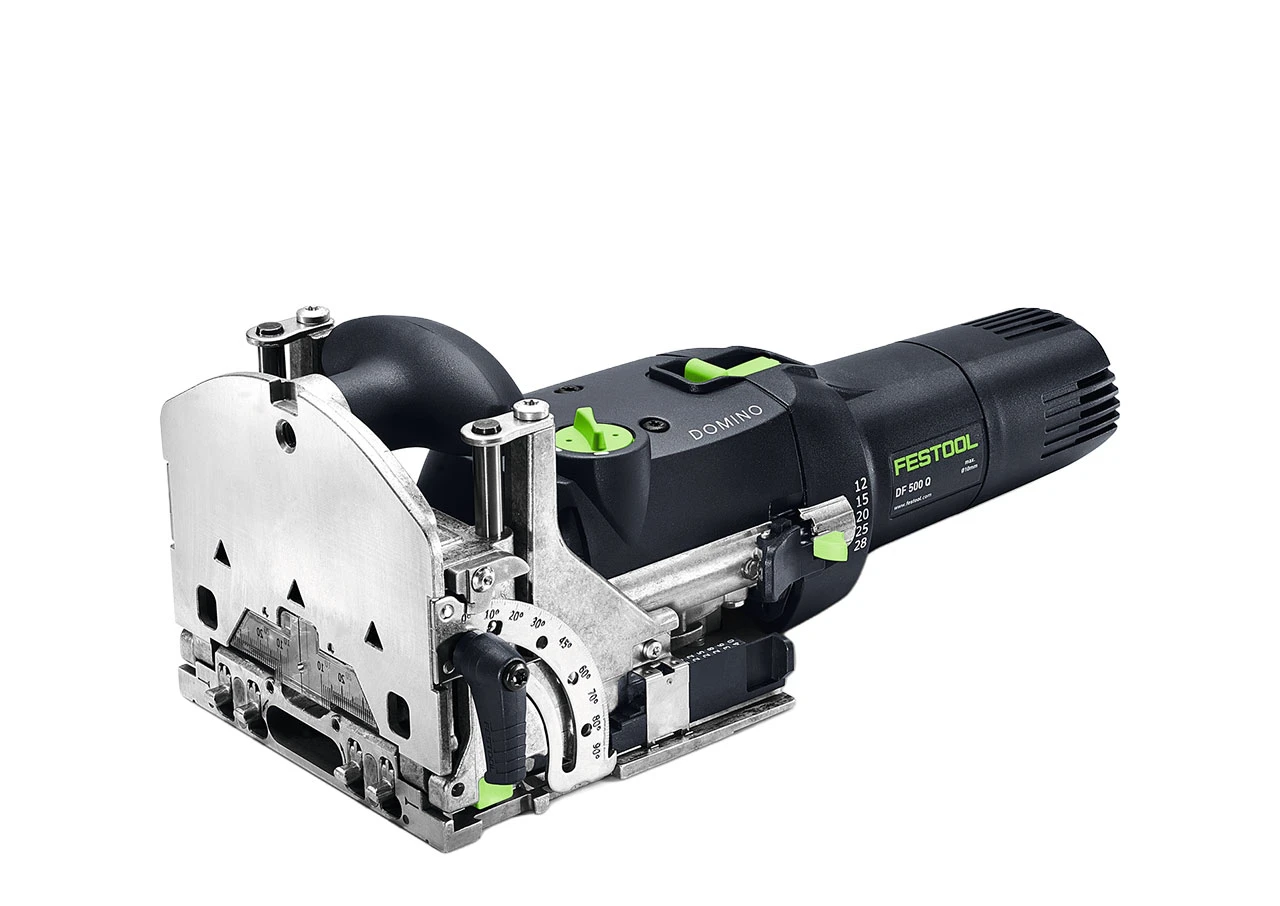

Fast, accurate DOMINO joints without all the marking out. The Festool DF 500 R is a 230V joining machine designed for making strong, accurately positioned joints in furniture, cabinetry and general joinery. It works across everything from panel and frame joints to mitres and can even be used on thinner workpieces from 12mm.

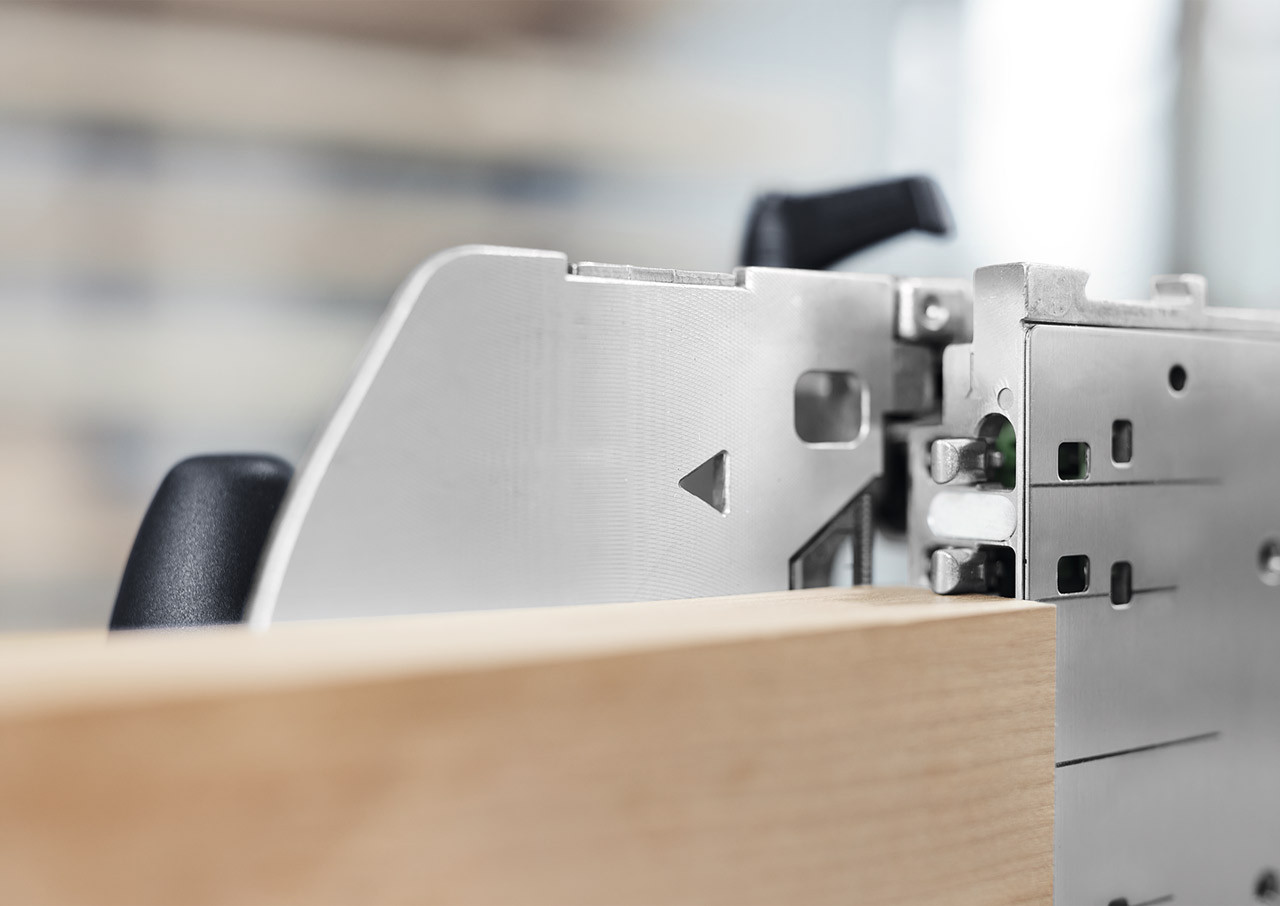

Festool’s pendulum routing action creates the elongated slots used by DOMINO tenons, giving you a joint that’s strong and resistant to twisting. Four built-in stop pins make repeat positioning much quicker, while the routing depth can be set to 12, 15, 20, 25 or 28mm to suit different DOMINO sizes and materials.

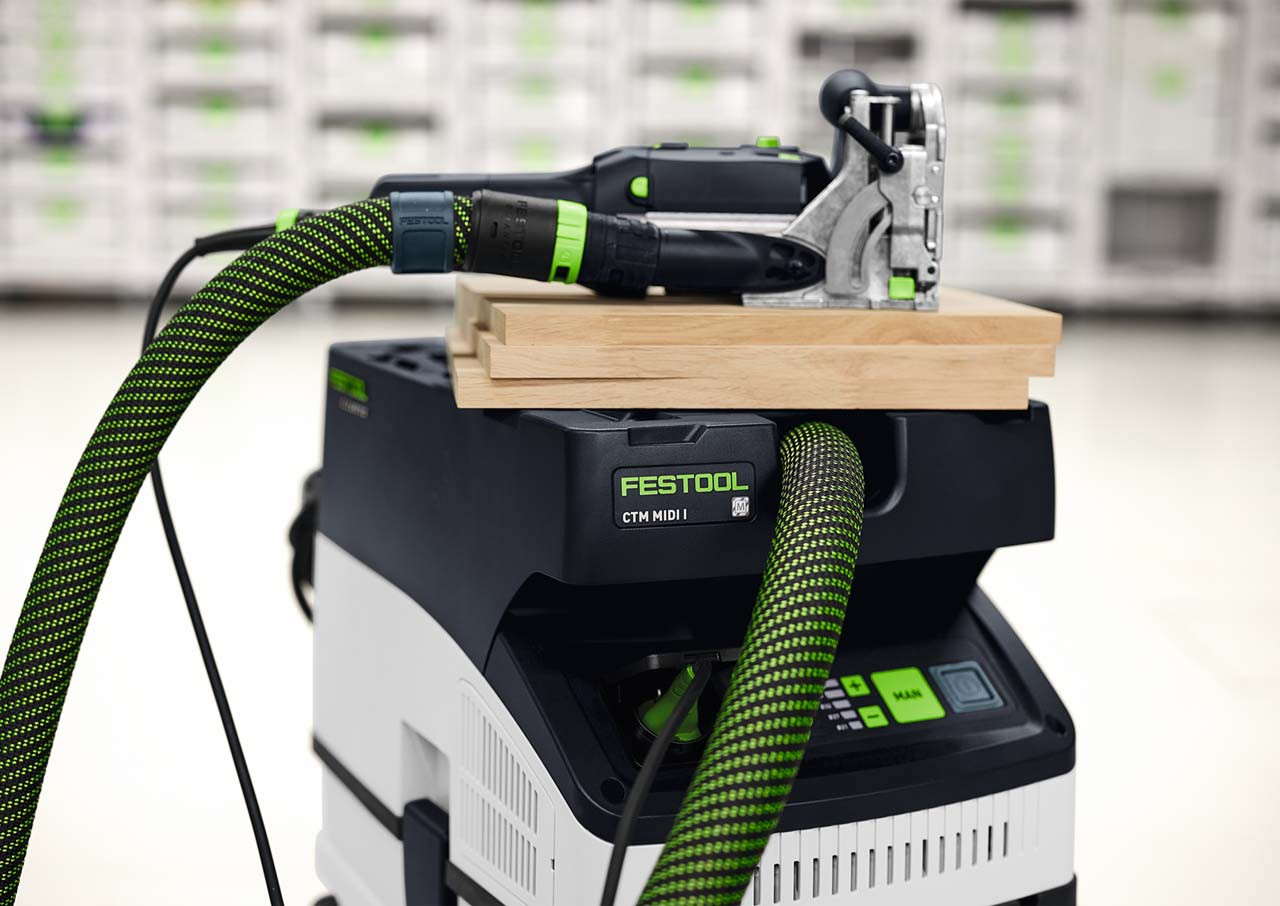

This RQ-Set also comes with an additional stop, trim stop and cross stop, giving you more options when working with narrow pieces, edges or repeated joints. Connect it to a compatible dust extractor and the chips are cleared from the routed slot as you work.
What’s Included
- Festool DF 500 R DOMINO Joining Machine
- D 5-NL 20 HW-DF 500 5 mm DOMINO Cutter
- ZA-DF 500/700 Additional Stop
- LA-DF 500/700 Trim Stop
- QA-DF 500/700 Cross Stop
- WAF 8 Open-Ended Spanner
- Plug-it Cable H05 RN-F-4
- Systainer³ SYS3 M 187
Technical Specifications
- Power: 420W
- No-Load Speed: 25,500 rpm
- Routing Depth Settings: 12, 15, 20, 25, 28mm
- Maximum Routing Depth: 28mm
- Compatible DOMINO Cutter Diameters: 4, 5, 6, 8, 10mm
- Routing Height Adjustment: 5-30mm
- Mitre Routing: 0-90°
- Dust Extraction Connection: 27mm
- Cable Length: 4m
- Drive Type: Mains
