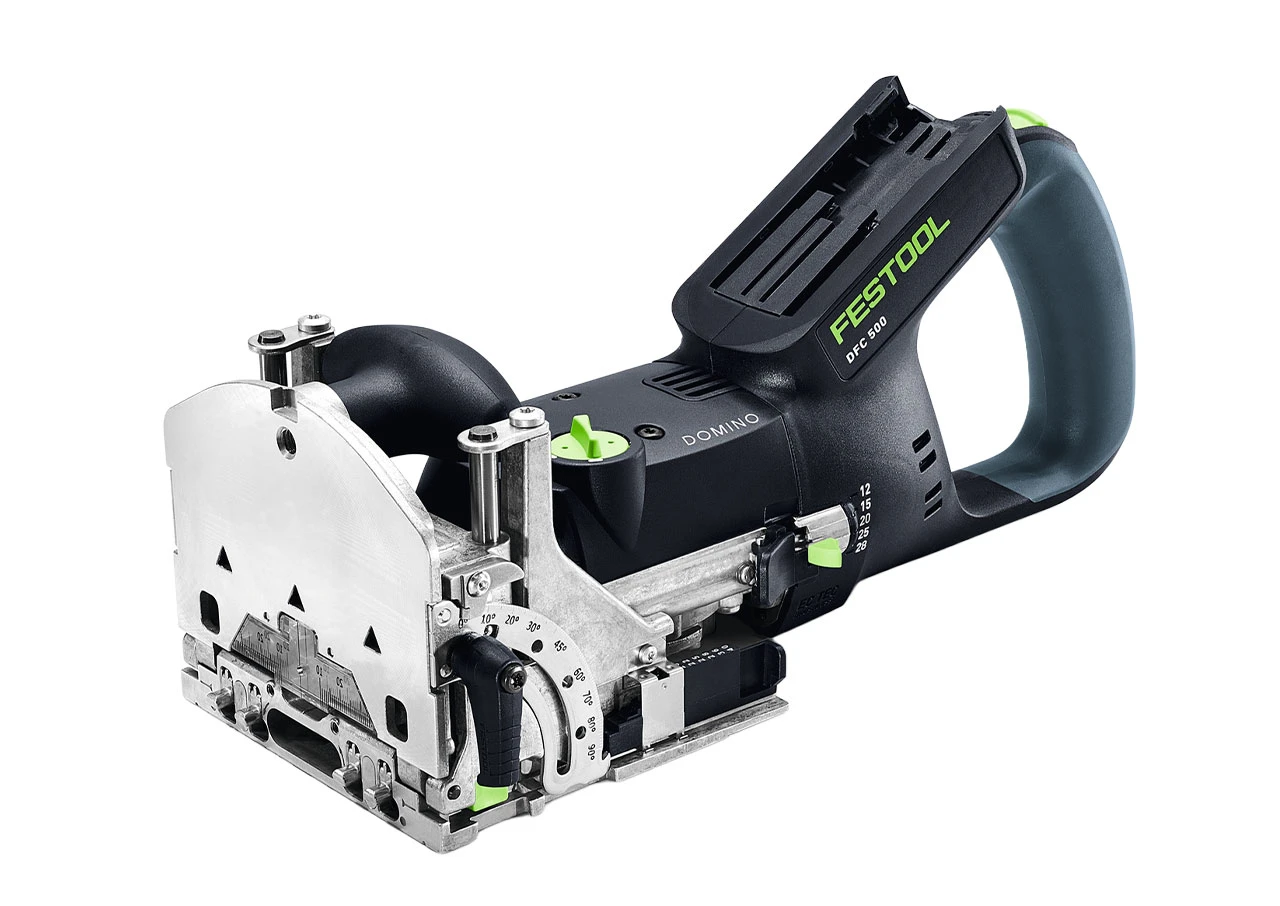

Cordless DOMINO joining wherever you’re working. The Festool DFC 500 is an 18V cordless joining machine for making strong, accurate joints in furniture, cabinetry and general joinery. With no cable to work around, it’s particularly handy when you’re working on larger pieces or moving between the workshop and site.
Festool’s pendulum routing system creates the elongated slots used with DOMINO tenons, giving you a secure joint that resists twisting. Four built-in stop pins make repeated positioning quicker, while preset routing depths from 12-28mm make it easy to set the machine up for different DOMINO sizes and materials.
It works with 4, 5, 6, 8 and 10mm DOMINO cutters and can be used on thinner workpieces from 12mm. The routing angle can also be adjusted from 0-90°. There’s a 27mm extraction connection for hooking up a compatible Festool dust extractor, helping clear chips from the routed slot as you work.

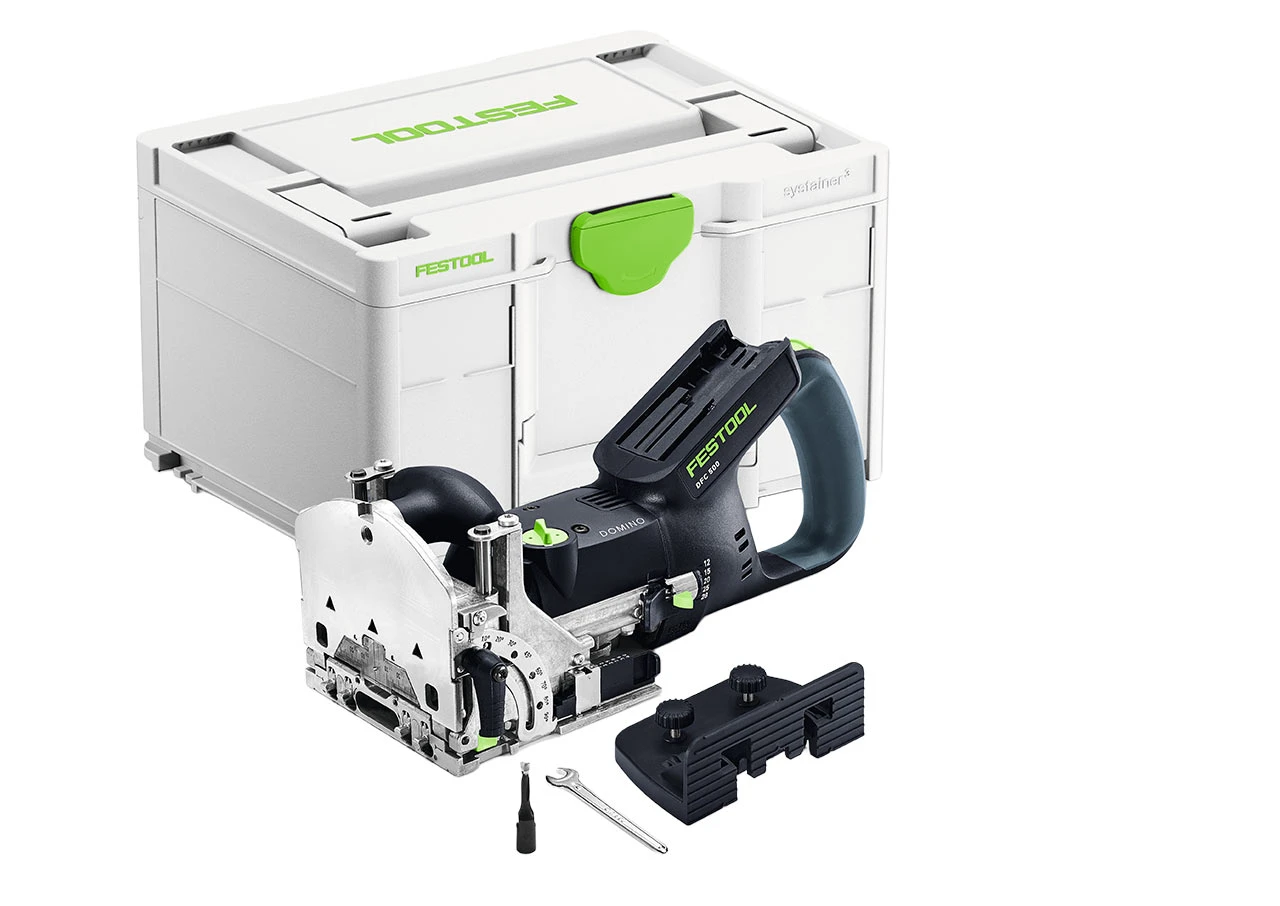

What’s Included
- Festool DFC 500 E-Basic Cordless DOMINO Joining Machine
- D 5-NL 20 HW-DF 500 5 mm DOMINO Cutter
- ZA-DF 500/700 Additional Stop
- WAF 8 Open-Ended Spanner
- Systainer³ SYS3 M 237
Technical Specifications
- Battery Voltage: 18 V
- No-Load Speed: 18,500 rpm
- Routing Depth Settings: 12, 15, 20, 25, 28 mm
- Maximum Routing Depth: 28 mm
- DOMINO Cutter Diameters: 4, 5, 6, 8, 10 mm
- Routing Height Adjustment: 5–30 mm
- Mitre Routing: 0–90°
- Dust Extraction Connection: 27 mm
- Drive Type: Cordless
- Weight of Tool 3.40 kg
Please note: Battery is not included and will need to be purchased separately.
