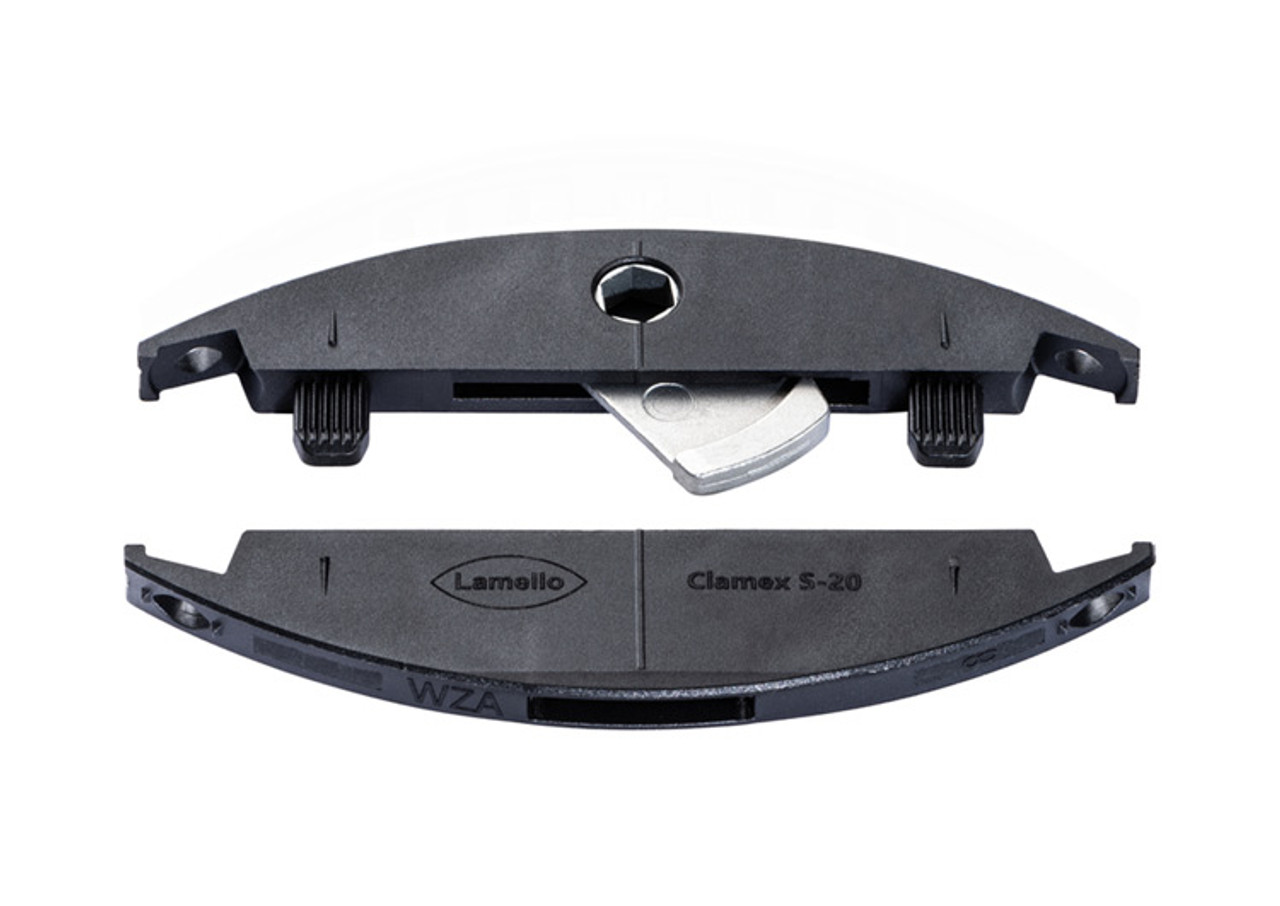

Discover the groundbreaking Clamex S-20. Clamex S-20 is compatible with any brand biscuit joiner. A detachable connector is designed for a 4mm biscuit groove and securely fits into your woodworking pieces, using the provided screws. Through the minimalist 6mm access hole, Clamex S-20 is firmly connected and disconnected using a lever. It enables aesthetic joints at various angles, making it perfect for both permanently joined and detachable mitres.
The Clamex S-20 clamping connectors are engineered with versatility in mind. They are suitable for a wide range of applications, including residential and commercial furniture, interior fittings, exhibition stands, and more. The connectors can be used with both solid wood and panel materials, offering flexibility and convenience for your woodworking projects.
- Detachable connector for mitres from 30-180° and for butt-joints
- Use with mitre joints from 14mm and butt joints from 16mm
- Installation with any biscuit joiner
- Narrow Connector allows installation into the edge of thin materials from 8mm
Clamex S-20 size:
59 x 12 x 3.9mm
Required cutter:
ø 100 x 4 x 22mm
Material connector:
Fibreglass reinforced plastic
Material lever:
Zinc die-cast
Installation tolerance:
Longitudinal ± 1mm
Tensile strength (N) MDF board: ⁓ 620
Tensile strength (N) Particle board: ⁓ 490
Tensile strength (N) Beech: ⁓ 620
Installation instructions: Click here
Please note, boxes of 300 are not supplied with fixing screws. These are to be purchased seperately.
