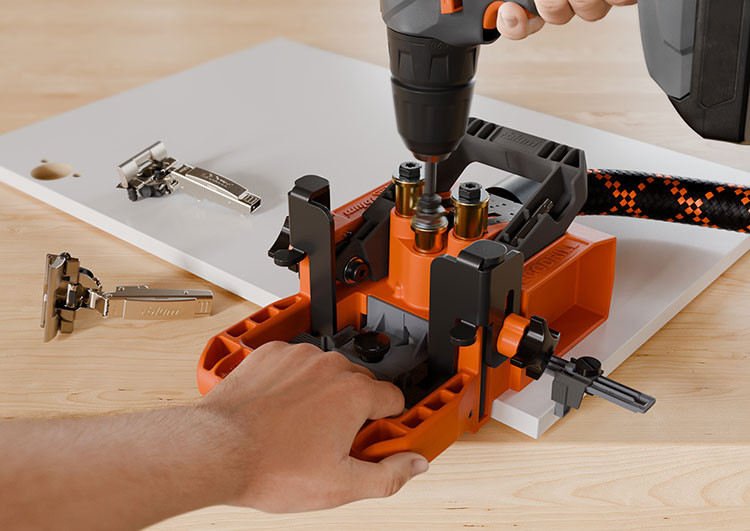

M31.1000 - ECODRILL (updated) with dust control, the essential tool for precise drilling of cabinet concealed hinges. This user-friendly jig ensures accurate marking and drilling of hole patterns on cabinet doors. It features a quick-release fastener for easy attachment and offers adjustable boss cup depths from 13-15mm. Ideal for screw-on or both knock-in and INSERTA hinges with its integrated 8mm hole cutters, the ECODRILL is your go-to for efficient hinge installation.
Key Features for Perfect Installations
- Flexible Side Stops:
The adjustable side stops, featuring a measuring scale from 80–130mm, allow easy adjustment to standard distances without constant remeasuring. For added flexibility, you can still use a marking line when working with multiple hinges or specific configurations. - One-Hand Drilling Distance Settings:
Adjust the edge distance and hole center with one hand for ultimate convenience. The ECODRILL supports a standard drilling distance from the door edge of 2–8mm and includes the precise 12.5mm hole center required for bi-fold hinges. - Effortless Material Thickness Adjustment:
Spring-assisted self-clamping accommodates material thicknesses from 15 to 40mm, simplifying setup and allowing quick transitions between different materials. - Integrated Template for Mounting plates:
The ECODRILL’s built-in angle template ensures accurate marking of hinge mounting plates and holders for TIP-ON and BLUMOTION pistons. This template enhances consistency and precision across all hinge assemblies. - Efficient Dust Extraction:
An integrated extraction socket, compatible with hoses 32–42mm in diameter, keeps your workspace cleaner by reducing dust exposure. The ECODRILL’s larger chip space further minimises dust, making drilling safer and more comfortable.
Designed for vertical drilling, the ECODRILL is suitable for various Blum systems, including: CLIP top BLUMOTION hinge, CLIP top hinge, MODUL hinge, AVENTOS HF, AVENTOS HK-XS lift systems, and more..
What’s Included?
The ECODRILL M31.1000 kit includes the jig, two 8mm drill bits, a 35mm drill bit, two TORX bits, and a mounting plate template, all crafted from durable die-cast, nylon, and steel.
