For use with cabinet heights from 205mm to 600mm, widths up to 1800mm and a power factor of 930-2800.
To determine the power factor, multiply the cabinet height (mm) by the front weight, including double handle weight (kg).
AVENTOS HK top is a compact stay lift designed for wall and tall cabinets. This Eclipse Black version features a dark lever arm, giving you the option to coordinate the lift system with darker furniture interiors and other dark Blum fittings.
Despite its compact size, HK top comes with plenty of integrated features. BLUMOTION soft close helps larger and heavier fronts open and close with ease, while the variable stop allows the front to remain open in the desired position for easy access.
- Perfect motion with a variable stop
- 3-dimensional front adjustment
- No other hinges are required
- Integrated safety mechanism
AVENTOS HK top can be used with wooden fronts, wide and narrow aluminium frames, as well as thin fronts of 8mm or more when used with EXPANDO T. It can also be combined with SERVO-DRIVE, Blum's electrical motion support system for handle-less applications.
Specifications:
AVENTOS HK top lift mechanism: 22K2500.ECS
Lift arm colour: Eclipse Black
Power factor: 930 - 2800
Minimum internal cabinet depth: 187mm (235mm when used with SERVO-DRIVE)
Minimum internal cabinet height: 176mm
Required door thickness: 8mm to 30mm
Fixing onto cabinet: Screw-on
Closing mechanism: BLUMOTION soft close
Lift material: Steel/Zinc plated

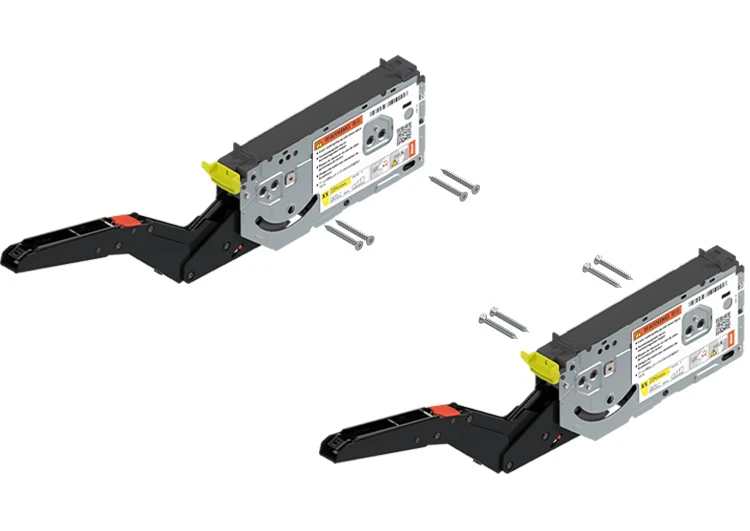

Item package: L+R mechanism with 8 chipboard screws 35 x Ø4.0mm
Installation instructions: Click Here
Please note: cover caps and front fixing brackets are purchased separately.
For full planning, ordering and technical information, see the latest Blum Catalogue and Technical Manual
